Description

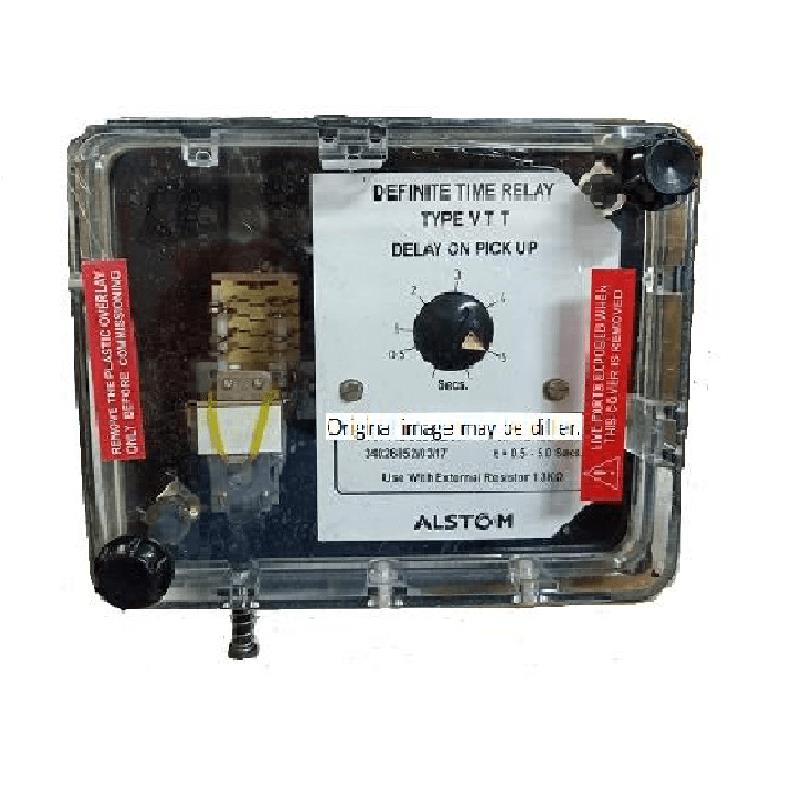

| VTT11ZG8143BCH |
|
|
| STATIC DEF TIME DELAY RELAY WITH DELAY O | ||
| Technical Specifications | ||
| Model No : VTT11ZG8143B(M) | ||
| VTT11 | ||
| APPLICATION - PICK UP | ||
| AUX. CURRENT OR VOLTAGE - 110V DC | ||
| CASE SIZE - 1/2N H 12T | ||
| CONTACTS (S/R OR H/R) - 2 N/O 2 N/C S/R | ||
| FLAG - YES | ||
| MOUNTING - FLUSH | ||
| TIME DELAY P/U OR D/O - 0.5 - 5 SECS. | ||
| External Resistor 1.3 K.OHMS | ||
| Name Plate RZF9066-601 | ||
| Outline Diagram MFM017 & FJ0349 | ||
| Wiring Diagram MZDZ601.01-2 | ||
